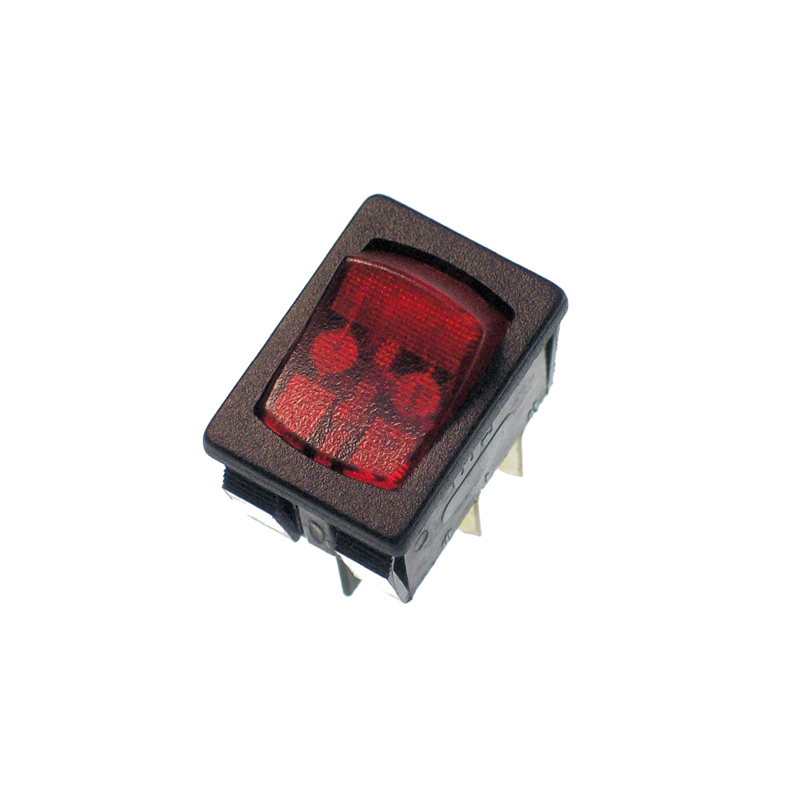

CW Industries has introduced a new LED illuminated miniature rocker switch in a momentary function for users with applications requiring a spring return.
Rated at 8 amps, 14VDC, the CW GRL-4011B-0000 features an on-off function in a SPST circuit. The GRL- 4011B-00000 mounts into a panel opening of 0.756 in. x 0.508 in. requiring no mounting hardware and has standard 0.187 in. terminals. The standard actuator is made of red polycarbonate and the housing is made of black nylon.
The LED lamp is configured for direct application to 14VDC at 100,000 hours. The entire line of CW 4000 Series Switches feature self cleaning contacts and are RoHS compliant.
