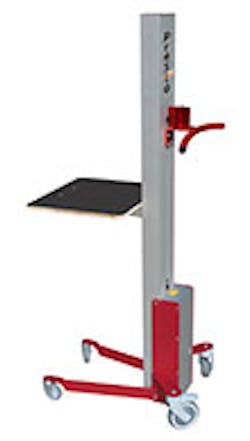

The LiftStik’s mast-style configuration places the platform and load directly over the four wheels to provide maximum stability. Using the fingertip control switch, operators can position loads at any height from 4.5 inches up to 53 inches.
Lift controls are conveniently mounted on the push/steer handle and can be accessed when transporting loads. Lifting speed is a fast 4.75 inches per second. The lift mechanism consists of a steel-reinforced cam belt. There are no hydraulics, so there is no chance for messy fluid leaks.
Two platform options are available: wood laminate, which measures 17.75 inches x 15.5 inches; or HDPE plastic, measuring 19.5 inches x 19.5 inches. The lifting capacity is 150 pounds at a 15.75-inch load center, regardless of the platform specified.
Power to the lift mechanism is supplied by a 24-volt, 7.2 Ah battery. A 115-volt external charger is included.
Front and rear swivel casters roll easily on any surface. Rear wheels feature a foot-actuated floor lock to prevent the unit from moving as items are loaded and unloaded, or when used as a work positioner.
For more information, phone 508-222-0177 or 800-343-9322, or access www.prestolifts.com.
