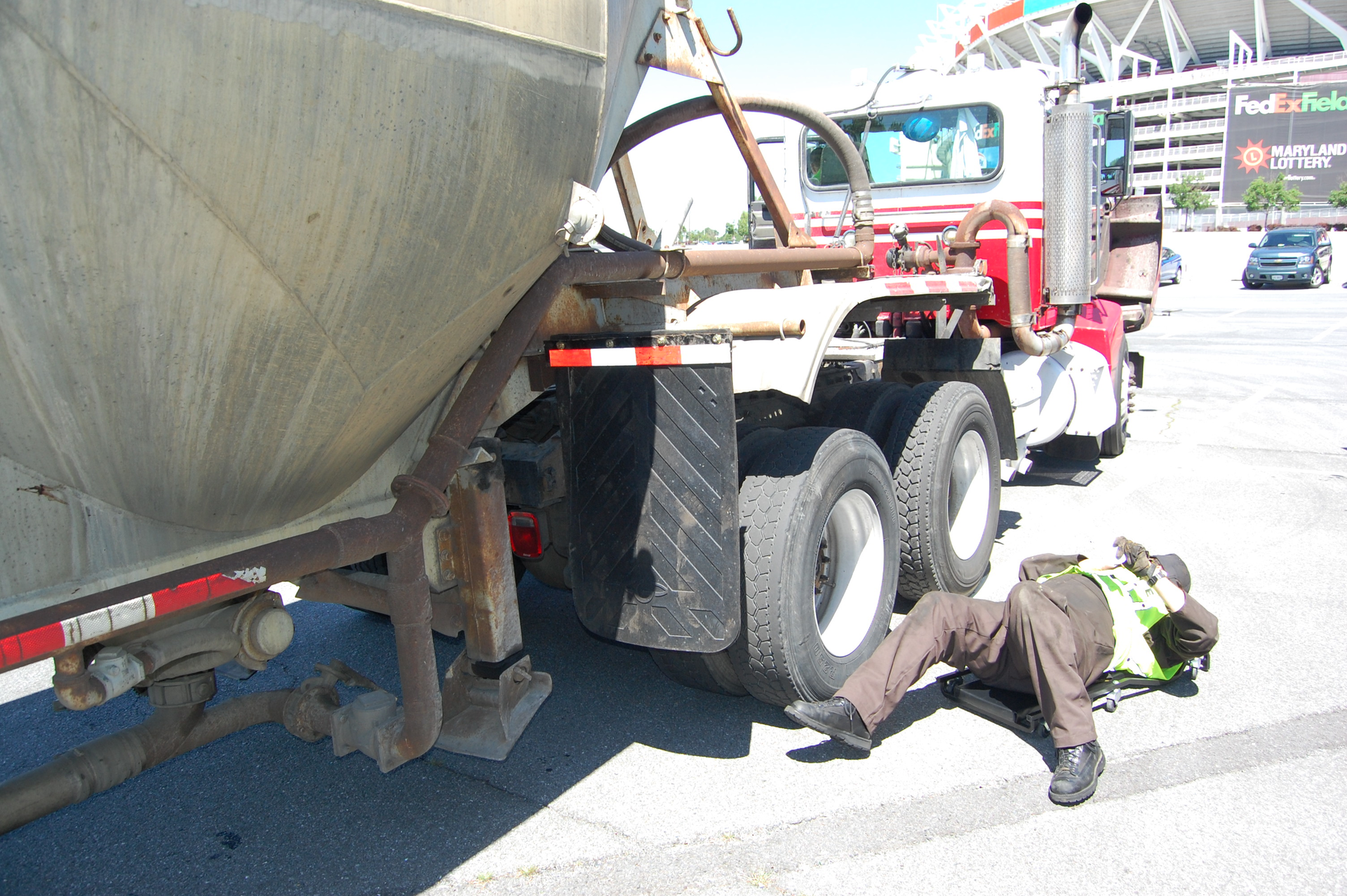

This yearrsquos Brake Safety Day in September replaces the former weeklong round of enforcement and inspection conducted around the same time and follows an unannounced Brake Safety Day that was held May 3

Brake Safety Day 2017: What to expect

Aug. 31, 2017
Bendix offers tips for fleets and owner-operators ahead of CVSA’s Brake Safety Day Sept. 7.

Forty-one percent: More than two in five. Viewed either way, it’s the share of vehicle out-of-service violations during this year’s Commercial Vehicle Safety Alliance’s (CVSA) International Roadcheck that were attributed to brake-related issues.

With CVSA’s Brake Safety Day and another round of roadside inspections coming up on Sept. 7, Bendix Commercial Vehicle Systems said it aims to reduce the number of such violations and improve highway safety with braking maintenance tips for fleets and owner-operators.

Inspections on large trucks and buses will be conducted by local, state, provincial, territorial, and federal motor carrier safety officials in the United States and Canada. This year’s Brake Safety Day in September replaces the former weeklong round of enforcement and inspection conducted around the same time, and follows an unannounced Brake Safety Day that was held May 3.

“Back in June, brake system violations accounted for 26.9 percent of the vehicle out-of-service violations during International Roadcheck, and brakes being out of adjustment accounted for another 14.5 percent,” said Fred Andersky, Bendix director of government and industry affairs. “That’s far too many issues arising directly from a vehicle’s most critical safety system, especially when most of these violations could have been avoided through regular maintenance and the right upkeep.”

Here are tips and tools provided by Bendix:

  1. Pre-Trip Readiness: Walk around the vehicle daily to visually inspect brake components and listen for audible air system leaks. Examine wheel-ends to make sure that the air chambers, pushrods, and slack adjusters are not damaged or hanging loose. Once or twice a week, get under the vehicle to check air disc brake rotors for cracks and inspect the lining wear on drum brakes without dust shields. Know how to read antilock braking system (ABS) warning light fault codes using the dashboard diagnostic switch or a remote diagnostic unit, and how to address them.
  2. Monthly Air System Checks: An air system contaminated by moisture – particularly oil – can suffer deterioration of components such as air seals, brake modulating valves, and brake chamber diaphragms, which can lead to air system leaks. Check for moisture in the system, and use oil-coalescing air dryer cartridges.
  3. Attention to Chambers: During pre-trip air system tests and visual inspections, listen for air leaks around the chamber; check for missing parts such as dust plugs, caging bolts, and clamp bands; and look for obvious damage to the chamber, such as dents, corrosion, and bent pushrods.
  4. Air Disc Brake Upkeep: Check the mounting hardware of calipers and air chambers; monitor pad wear (minimum allowable friction material thickness is 2 mm); measure rotor thickness and look for cracks that exceed allowable limits; and look for damage or corrosion on tappets and boots. Ensure proper running clearances between the rotor and pads, and check that the caliper slides freely.
  5. Learn from Your Friction: Check friction regularly for cracks or missing pieces, ensure adequate thickness, and examine drums and rotors for signs of dragging brakes or overheating linings. Know the signs of drum friction improperly rated for the vehicle, including scoring on the friction or the drum; degradation that gives the friction a porous, charcoal-like appearance; and “hot spotting” – a leopard-spotted pattern on the drum.
  6. Determine Brake Free Play: Free play – the distance that the center of the large clevis pin moves before the brake shoes come in contact with the drum – should be between 3/8 and 5/8 of an inch. If free play falls below the minimum or exceeds the maximum, inspect all brake components for damage or out-of-spec conditions. Free play should be the same across all brakes on a system.
  7. Measure Wheel-End Brake Stroke: Check the distance from the chamber to the large clevis pin with the brakes released, and again after a fully charged brake application. The maximum allowable power stroke varies depending on the chamber size and type.
  8. Keep Slack Adjusters Lubricated: Inject new grease until old grease is forced through the release opening. Manufacturer instructions will advise on how much grease to purge from the adjuster, and what lubricant to use. Grease every 30,000 miles, or every time you do a preventive maintenance inspection.
  9. Grease to Capacity: Insufficient grease to fill all interior gaps can lead to condensation forming inside the brake components, which may cause rust and corrosion. Seals inside the cam tube are engineered to let excess grease out of the area, so new grease should be added until any dirty grease or condensation is visibly purged out of the end cam tube near the slack adjuster.
  10. Select the Right Friction: When relining brakes on vehicles affected by federal stopping distance regulations, ask suppliers for evidence of compliance: Not all replacement friction marketed as acceptable will actually perform to the standard. To maintain OEM performance, replace with like-for-like friction.

“You can put the best equipment on a vehicle in the name of safety, but it remains absolutely critical to provide the right maintenance and service commitment, to ensure that equipment performs at its best when it’s needed most,” Andersky said. “Technician training, and education and equipment support, are vital factors in the safety equation we’re all working on together.”

For more information about Bendix air brake systems and technologies, call 1-800-AIR-BRAKE (1-800-247-2725) or visit
