Aaron Marsh/Fleet Owner

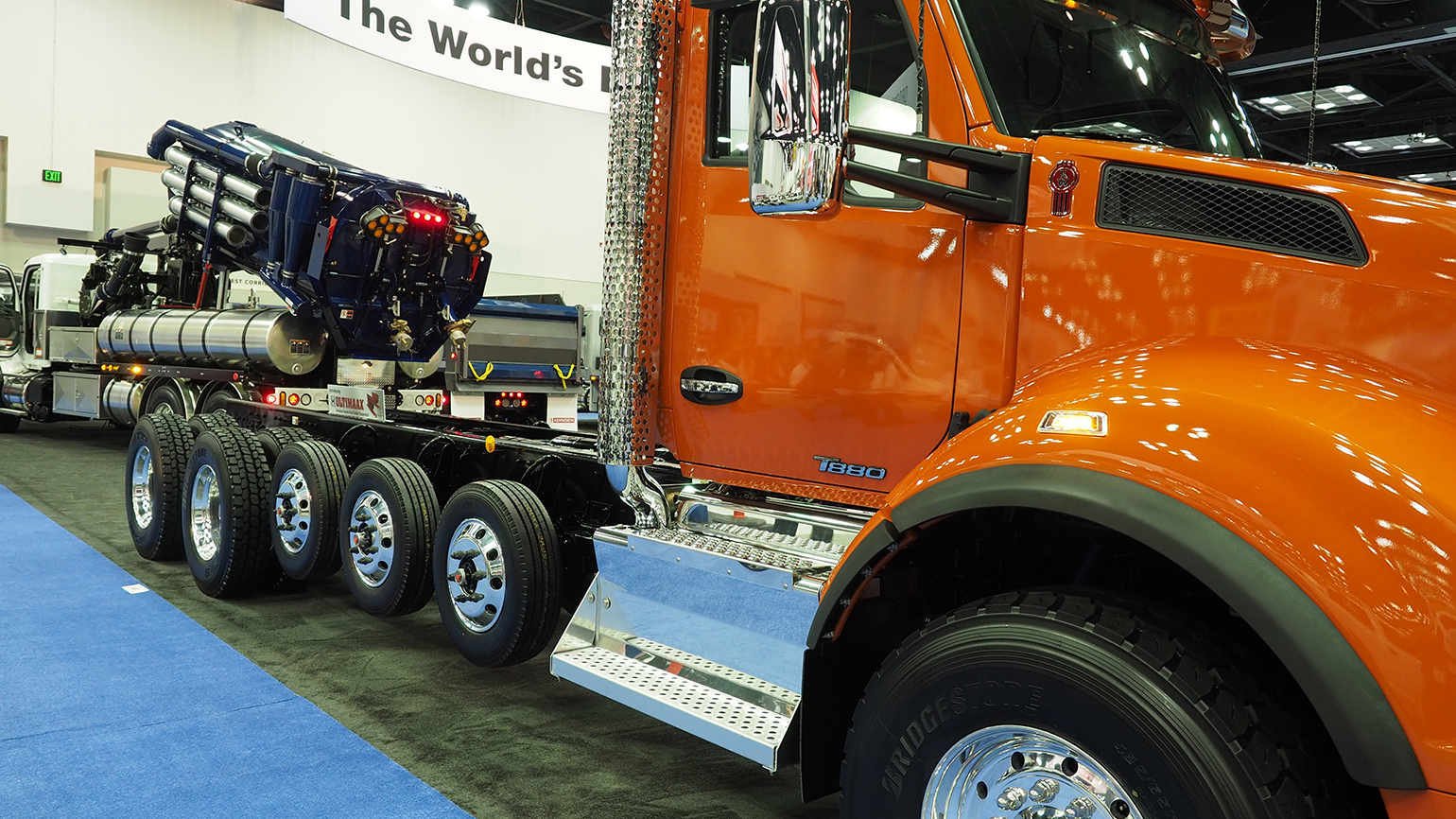

This Kenworth T880 showed off the new Hendrickson UltiMaax severeduty rubber suspension option at the 2016 NTEA Work Truck Show in Indianapolis

Hendrickson suspension option for Kenworth T880

March 3, 2016
INDIANAPOLIS. Kenworth Truck Co. announced availability of the Hendrickson UltiMaax suspension on its T880 at this week’s NTEA Work Truck Show.
INDIANAPOLIS. Kenworth Truck Co. announced availability of the Hendrickson UltiMaax suspension on its T880 at this week’s NTEA Work Truck Show.
The UltiMaax is an advanced severe-duty rubber suspension that offers a balance of empty ride quality and loaded stability for driver comfort, while also cushioning the load and protecting the chassis, cargo and body equipment from excessive vibration and road shock due to potholes and rugged terrain, Kenworth said.The suspension is available with axle ratings from 46,000 to 52,000 lbs., axle spacings of 54- and 60-in. with 11-in. ride height for applications such as refuse, sand and gravel, crane/boom, platform, construction, and logging.“Fleets that operate trucks up to 52,000-lb. capacities can now specify the Hendrickson UltiMaax severe-duty suspension with the Kenworth T880 to provide their drivers with a consistently smooth ride while running loaded or empty on the harshest roads and terrains,” said Kurt Swihart, Kenworth marketing director. “The Kenworth T880 equipped with a Paccar MX-13 engine rated up to 500 hp. and 1,850 lbs.-ft. of torque already provides a durable, reliable and productive vocational truck for such demanding applications. The severe-duty suspension helps enhance the T880’s traction, stability and handling under loads from 46,000 to 52,000 lbs.. Plus, it adds even more durability and helps customers maintain a lower cost of operation with its components designed for maximum weight savings for additional payload.”
A closer look at the Hendrickson UltiMaax severe-duty rubber suspension available on the Kenworth T800 - click to enlarge. (Aaron Marsh/Fleet Owner)
The suspension features bar pin end bushings, a progressive load spring design, and a rugged axle connection to extend its service life. The progressive load spring design also makes replacement easier and the rugged axle connection can reduce re-bush time. Rubber shear springs carry a majority of vertical load in the empty condition, creating a smoother ride. As the load increases, the suspension’s ride and stability characteristics change to meet the application’s needs without an abrupt change in spring load.
